Oracle BRM Portal Java PCM API Design Issues

I respect Oracle. They're awesome. They’re very smart and that’s why they bought Sun Microsystems. But no great companies are exempted from mistakes and great mishaps. I know you know some. I'm not surprised if you'd pick Microsoft. Dang Vista really hit them hard and that wasn’t there first. But I'm not gonna talk about Vista. I want to focus on what my experience was working with Oracle BRM Portal Java PCM API, specifically their FList class and Web Service Interface.

I have not used every single API but enough to point out what's wrong with it.

Here are the design issues I’ve found:

1. FList class is a Hashtable

2. FList data structure follows the anti-pattern “Yo-yo Problem”

3. Heavy use of Reflection

4. Vague documentation

FList class is a Hashtable

FList is the point of entry/gateway in the Oracle BRM Java API to initiate and create transactions. It can contain aggregates of different types of objects that represent the data and its relationship in the BRM database. The result coming back from any brm request is also a FList. So the brm request/response is of the FList form.

Now here comes the bad part. FList is a Hashtable! It’s thread-safe because it’s synchronized but at the same time greatly compromises performance. FList is very coarse-grained object that can have a deep tree structure. If you put it on a multi-threaded environment the application will bend down on its knees. So their Java PCM API is not scalable at all.

FList data structure follows the anti-pattern “Yo-yo Problem”

Think of this. All of the available object types in the Java PCM API are contained in the FList. You have to dig deep into it and know what type of object you are getting. The problem comes when you keep flipping from one object to another and that doesn’t clearly explain how these objects are related to each other and what subject do they convey. It’s confusing. Their PCM Java Documentation API is not enough to understand what are involved in a specific BRM process. You have to reference as well their Portal Documentation which is about 312MB containing around 10,756 files. If you need to understand something it’s like finding a needle in a haystack.

Heavy use of Reflection

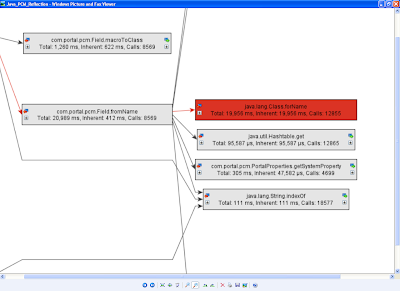

I have never seen an application that uses heavy reflection till I came across FList. The image above shows how many times reflection was used to just grab one Sales Order through Oracle’s BRM Web Service interface. I’ve used JProfiler to take a snapshot of the call trace. The lookup of the class being invoked incurs the most overhead compared to its invocation (seehttp://www.jguru.com/faq/view.jsp?EID=246569). Oracle BRM WS has definitely some performance issues with its Java engine.

The Field class from the package com.portal.pcm made 12,855 lookups and off course another 12,855 invocations incurring 20 seconds to complete just these two tasks. Its ridiculous. What in the world is it doing???

Vague documentation

Oracle BRM is a beast. The documentation as well as mentioned above earlier. It’s so huge that you can easily get lost without the guidance of an Oracle Consultant. It’s not trivial. The goal of every complex system should be to provide enough and clear documentation. What really gets into my nerves is when we start customizing fields in BRM and the document doesn’t tell you what data you need to pass to FList to properly fetch what you want from BRM. Even outside of the customization discussion, you need several pieces of information from one page to another and combine them to formulate your desired FList structure.

This is just one of those tools where you definitely have to go to a training. I'd say hire one good Oracle Consultant and let your trained employees work with him to manipulate the behavior of their BRM tool. My current company is totally dependent on Oracle Consultants. We have 6 of them and they get paid a ton. I wish they invested in their employees and let them be trained and be guided by just one consultant.


  1. Greetings, I believe your blog may be having browser compatibility issues.
    When I look at your website in Safari, it looks fine however, if opening in I.
    E., it's got some overlapping issues. I simply wanted to provide you with a quick heads up! Besides that, great site!
    Also see my web site :: teen sex videos

  2. I would disagree on this:

    1. Hashtable is not the best class to work with, but in PCM case, its not an performance issue
    2. You may say its anti-pattern, but PCM is actually kinda P2P proxy to the database behind. As with database
    tables, you wont see relations in between them, its same with PCM
    3. Reflection in PCM is mostly used do obtain data structure, so its not a performance problem (reflection top-eater is
    calling a methods)
    4. The documentation itself is one of the better I've seen (altough I may agree it could be much better writen).
    However, without knowing the Brm architecture, and the company business logic, you may stuck with it for months.

    Take in consideration that first Brm was writen in C language, and unfortunately still follows the C syntax thru modern
    languages and API. For example, they had added XML functionality over Flist, but with no use over the old structure.
    What most bothers me with the Oracle is the prices which are definately not the price-performance model :)
